Borewell Pumps
Borewell Pumps
Solar submersible pumps from 1 HP to 10 HP for borewells and deep water sources.
Borewell Solar Pumps
Where the water level is deeper than about 15 metres, a submersible pump is recommended — it sits inside the borewell and pushes water to the surface. Solar submersible pumps are the most widely used solar pumps in India, available in AC and DC technology and powered through an MPPT solar pump controller.
We supply solar pumps from leading Indian manufacturers. Exact specifications vary by brand and model.
Submersible · 1–10 HP
Solar Borewell Pumps — 1 HP to 10 HP
Each system includes solar panels sized to the pump, an AC solar pump controller, the submersible pump, mounting structure and balance of system (BOS). Typical performance by rating:
- Solar array matched to pump (≈1 kW per HP)
- Stainless-steel and water-filled pump options
- 230 V and 380 V motor options
- 2850 RPM motors
- Complete with mounting structure and BOS
Performance by Rating
MPPT · VFD · IP65

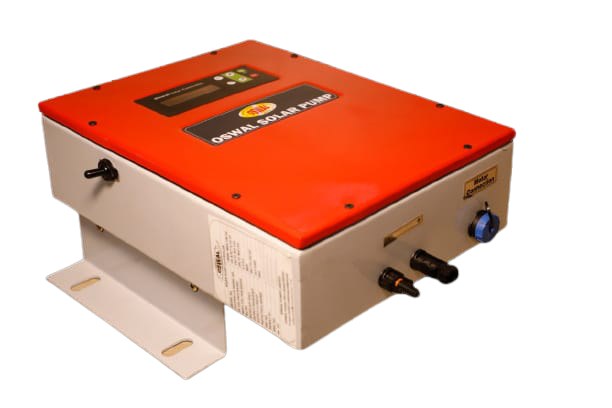

Solar Pump Controllers
A transformer-less, microcontroller-based solar pump inverter with V/F control and soft start, regulating pump speed in real time to extract maximum power from the panels.
- Built-in MPPT for maximum water delivery
- Soft start — prevents water hammer
- Auto / manual switchover to AC grid supply
- LCD shows speed, DC voltage, output and status
- GSM remote monitoring and RS485 telemetry (optional)
